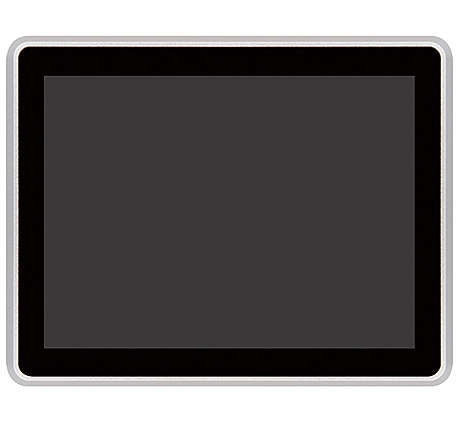

- Fanless Industrial Class FLAT-PANEL Touch Panel PC
- Intel® Apollo Lake Celeron® N3350 SoC Processor
- IP65 Front Panel, 8.0" LED Backlight, 1024 x 768
- Supports Mounting Clips for Wall/Panel/VESA Mount
- Single Gigabit LAN and 2 x Serial Ports
- ECO-design for EuP/ErP

Model Series HPC080SC
Part Number HPC080SC-FP3350
Display Specification
Panel size 8.0" LED backlight
Front Bezel IP65, NEMA 4 Rugged Protection, Full Planar Metal Border
Brightness 400 nits
Display Color 16.7M
Resolutions 1024 x 768 @ 60Hz
Viewing Angle (H/V) 160° / 160°
Pixel Pitch 0.158 x 0.158 mm
Aspect Ratio 4 : 3
Contrast 700 : 1
Response time 30 ms
Touch Specification
Touch Type Projected Capacitive Touch
Active Range 163.05 x 122.54mm ±0.2mm
Transparency 85%
Surface Hardness ≧6H (JIS-5400)
System Specification

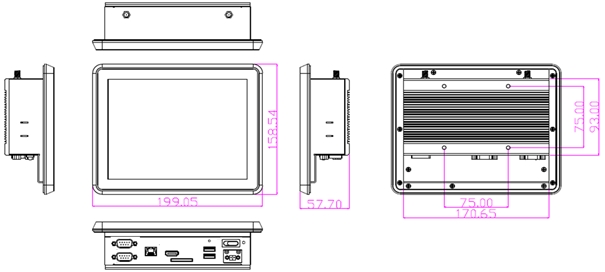

System size 199.05 (W) * 158.54 (H) * 57.70 (D) mm

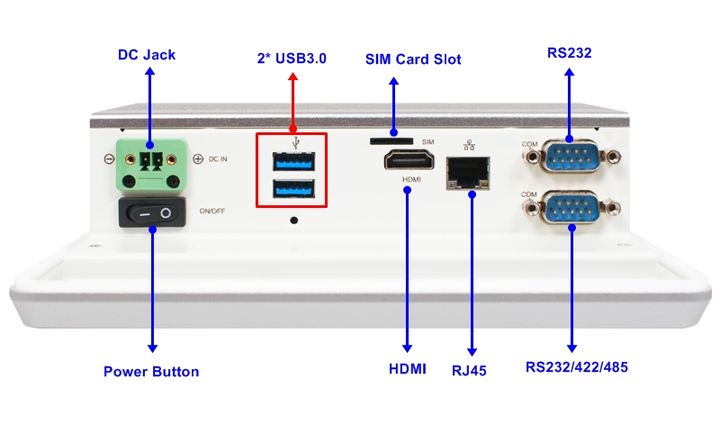

Bottom IO 1 * 12V DC-in (Phoenix Contact Terminal Block)
1 * Power switch
2 * USB 3.0
1 * Micro SIM Slot
1 * HDMI 1.4b (3840 x 2160 @ 30Hz)
1 * RJ-45 1GbE LAN (Realtek 10/100/1000)
2 * COM Ports (1 * RS232, 1 * RS232/422/485)
Processor Fanless Intel® Celeron N3350, 1.10GHz – 2.40GHz Burst, 2-Core 2-Thread, 6W TDP
Memory 1 * 204-pin DDR3L-1866 up to 8GB Total, 1.35V Required
Graphics Intel HD Graphics 500, 200MHz - 650MHz
Audio Realtek ALC888 HD Audio
LAN 1 * Realtek RTL8111H Gigabit LAN
Stroage 1 * 2.5" SATA3 (≦10mm)
1 * M.2 Slot (M-key, 2242 SATA only)
Speaker 2 * 3W 8Ω
WiFi / Cellular 1 * Full Size Mini PCI-E Slot Open
Power 100~240V AC-DC 60W Power Adapter included
12V DC with over current protection fuse
Power Consumption: 13W
Certificate CE,FCC For Panel PC
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Temperature Operating Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C
Shock-Operating Test 15G, 11ms
Vibration-Operating Test 5~500Hz / 1 Grms
Mounting Clips

USB Lock

Ordering Info
Part Number Description
HPC080SC-FP3350 8.0" Industrial Panel PC with N3350 and Projected Capacitive Touch
L01AS053-F (Incl) Adapter 12V 5A 60W
HLMCBPCUS-F (Incl) US Power Cord
HPC-HB (Sold Seperately) Mounting Clips, Total 2 required
USB Lock USB Lock
OS Support List
Windows Linux
Windows 10 64bit Fedora 25.13
Win 10 IoT Enterprise 64-bit Ubuntu 16.10
pfSense 2.3.2
HPC080SC-FP3350 BIOS P02 Release Date 2021-10-21
Description First Release for Production.
Download  H080SCP2.zip
Flash Instructions for UEFI 1. Unzip the file and copy to the USB flash drive with FAT32 format.
2. Insert the USB drive, Enter BIOS, and select "Built-in EFI Shell" from Boot Override.
3. Type fs0: to change path when you see Shell prompt.
4. Type *.NSH to auto update BIOS.
5. Power off the system after the update finished.
* Read Detailed Instructions in PDF
Revised History [A01]. Initial BIOS.

· Please do not flash the BIOS UNLESS your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system.
· Please be aware that by flashing this BIOS you agree that in the event of a BIOS flash failure, you must contact your dealer for a BIOS replacement. There are no exceptions to this policy. Jetway does not have a policy of replacing BIOS chips directly with end users.

Drivers for HPC080SC-FP3350
  Windows 10 (64 bit)
Chipset  inf.zip
Graphic  gfx.zip
Sound  audio.zip
LAN  rtllan.zip
Serial IO  SIO.zip
ISH  ish.zip
TXE  txe.zip
iRMT  iRMT.zip
Touch  eGalaxTouch_win.zip
1.0  G03-PCNP691CFP-F.pdf
